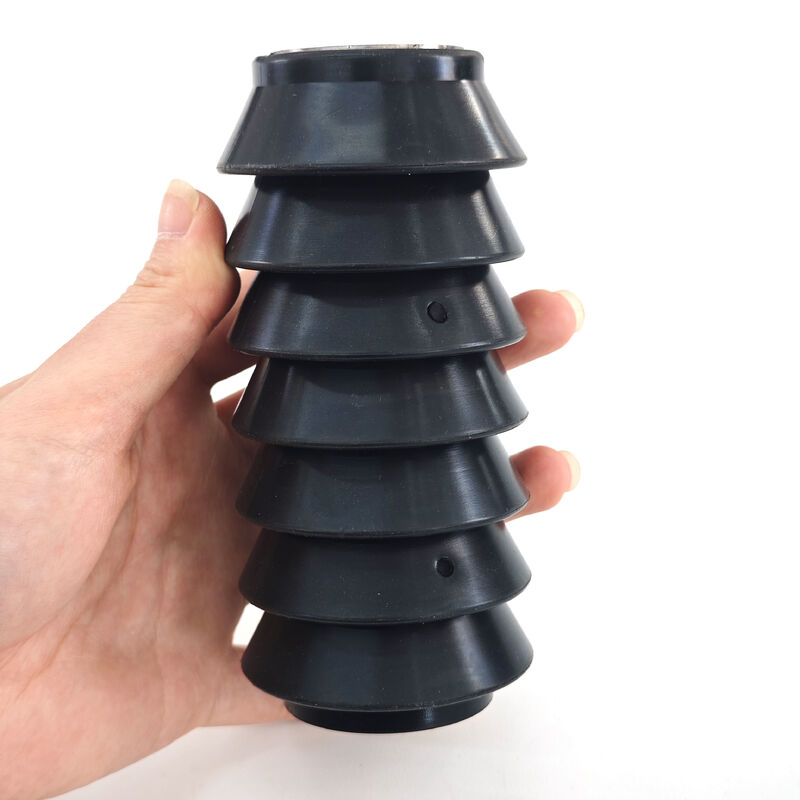

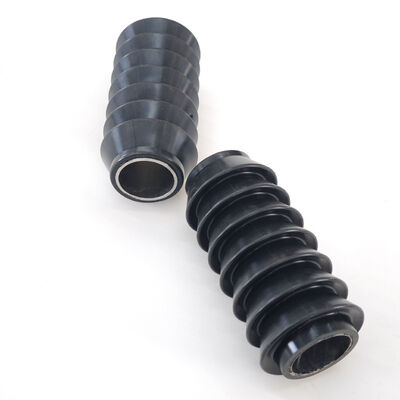

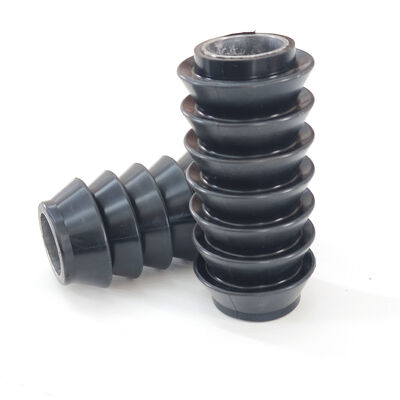

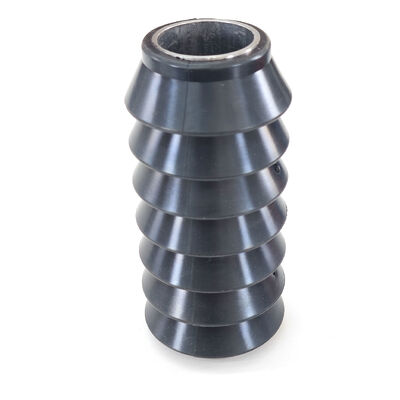

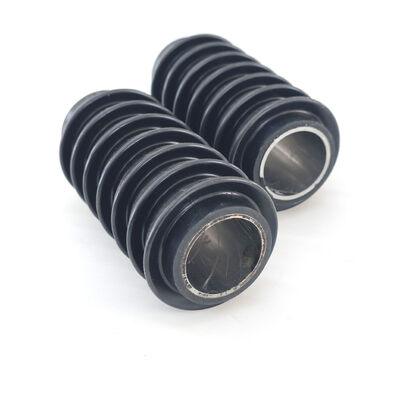

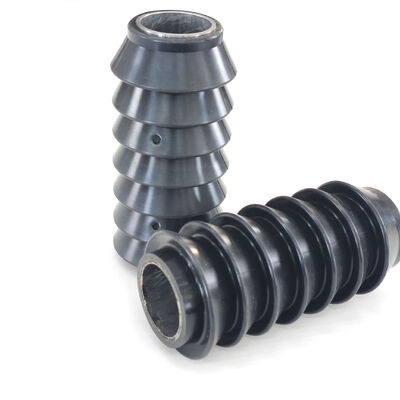

SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου

SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου

  • SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου
  • SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου
  • SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου
  • SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου
  • SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου
  • SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου
SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου
Λεπτομέρειες:
Τόπος καταγωγής: Σαγκάη, Κίνα
Μάρκα: SHQN
Πιστοποίηση: ISO 9001
Αριθμό μοντέλου: Τύποι SV Μπατονέτες
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 500 τεμ
Τιμή: 2.5-5
Συσκευασία λεπτομέρειες: συσκευασία χαρτοκιβωτίου
Χρόνος παράδοσης: 15 ημέρες
Όροι πληρωμής: L/C, T/T, Western Union
Δυνατότητα προσφοράς: 5000 τμχ το μήνα
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Μέγεθος: 2 1/2 ίντσες Υλικό: Καουτσούκ+μεταλλικός πυρήνας
Διαθέσιμος: στυλ sv Περιβάλλον:: πετρέλαιο, αέριο, συμπυκνωμένο αέριο
Χρώμα: ΜΑΥΡΟΣ MOQ: 500 ΤΕΜ
Χρόνος παράδοσης: 15 ΗΜΕΡΕΣ Δείγμα: Διαθέσιμος
OEM/ODM: Διαθέσιμος Εφαρμογή: Πετρελαϊκός πεδίο
Επισημαίνω:

SV Swab Cups 2 1/2 ίντσες

,

Κύπελλα υψίστης άμμου

,

Κύπελλα Swab Oilfield με εγγύηση

Product Introduction




The 2.5 inch SV swab cup is a rubber-and-metal-core component for oilfield fluid recovery. Its flexible lip profile is a key selection feature for light-to-medium-load swabbing with sand-bearing fluids. Compare the lip geometry, core bore and seating dimensions with the existing assembly; include fluid composition, solids content and operating temperature when specifying the replacement.

Technical Specifications



Product Type SV Type Swab Cup
Nominal Size 2 1/2 inch
Material Option Confirm the rubber compound against fluid, temperature and service requirements
Application Light to Medium Fluid Loads / Sand-laden Fluids
Compatibility Mandrel fit checked against drawing or sample
Hardness Specify required Shore A hardness with the inquiry



Other Available types of Swab cups:


TA style: TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Confirm the bushing material and rubber compound for the required fluid service. For frac fluids, include the fluid composition and operating conditions with the inquiry.


MV style: Shanghai Qinuo offers the popular Guiberson* profile MV Swab Cup in both nitrile and frac fluid rubber compound. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. It is very efficient in fluid with suspended sand.


V style: Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.








SV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμουSV Swab Cups 2 1/2 ίντσες για υψηλό swabbing άμμου
Key Features & Advantages


1. Flexible Lip Profile: Compare the ribs and sealing edges with the worn cup. Sand-bearing service calls for review of particle content, tubing condition and the required rubber compound.



2. Light-to-Medium-Load Selection: Provide the intended fluid load and the existing cup arrangement. Confirm orientation, spacing and seating before selecting the replacement assembly.



3. Compound and Hardness: Match the rubber requirement to the service fluid and temperature. Include abrasion requirements and any hardness specification from the equipment drawing.



4. Bore and Installation Fit: Check actual tubing internal diameter, cup sealing diameter and mandrel dimensions. Report restrictions, scale or pitting that could affect selection.



5. Replacement Identification: Send side and end views of the removed cup, overall height, core opening and seating dimensions. These details distinguish the required SV configuration from other swab-cup profiles.

FAQ


Question: What makes the SV cup the best for high sand ratios?
Answer: Flexible lip geometry is one selection factor for sand-bearing fluid. Review the sand concentration, wear pattern and compound requirement together; operating conditions determine the suitable assembly.



Question: Will these cups fit my standard 2.5 inch mandrel?
Answer: Check the core bore, shoulder and seating dimensions against your mandrel drawing or measured sample. Nominal 2.5 inch size alone does not establish fit.
